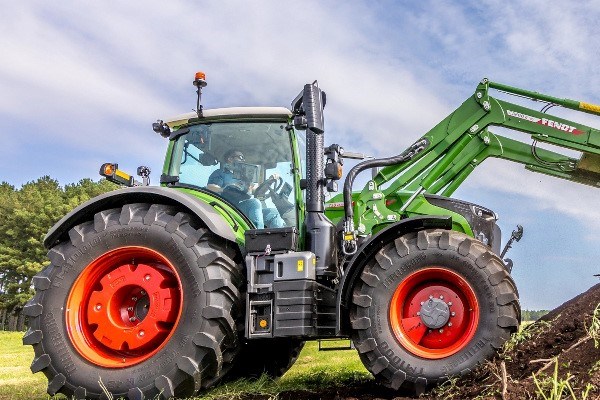

Fendt 722 Vario Gen7

Double tap to zoom



Features

Performance

Performance on a new scale: technologies such as the Fendt Dynamic Performance multi-output concept, a cooling concept with a pressurized fan, and high-performance hydraulics with a delivery rate of up to 58 gpm make the Fendt 700 Vario Gen7 a pioneer in the 200 - 300 hp class.

Added performance concept:
Fendt DynamicPerformance

In the top model Fendt 728 Vario Gen7, an additional performance of up to 20 hp is available regardless of the driving speed. This offers the following advantages:

  • Lighter tractor with higher power
  • Less fuel consumption per ha



Engine: AGCO Power CORE75

An AGCO Power CORE engine is used for the first time in the Fendt 700 Vario Gen7. This is an all-new family of diesel engines that continues the legacy of AGCO Power's durable and future-proof designs, developed with tomorrow's alternative fuels in mind.
The CORE75 with 7.5 litre displacement and 223 kW (303 hp) features excellent torque, low fuel consumption and high reliability.

  • superior torque of 1,450 Nm
  • best fuel efficiency thanks to Fendt iD low-speed concept (nominal speed at only 1,700 rpm)
  • robust and simple construction
  • innovative design for improved turning radius and increased ground clearance
  • long service life and low maintenance costs
  • compatible with renewable HVO fuels
  • very good cold-start characteristics

Cooling concept: Concentric Air System (CAS) with pressurized fan

The concentric, forced-air fan has an independent hydrostatic drive. Its extremely small design allows a large steering angle responsible for the outstanding maneuverability of the Fendt 700 Vario Gen7. With up to 40% less drive power than a standard fan, it is also enormously efficient, saving fuel.

High-performance hydraulics

With the high-performance hydraulics, a considerable flow rate of up to 58 gallons/min is available. The modular coupling system gives you the choice between UDK, DUDK and flat-sealing FFC couplings in the front and rear.

58 gallons/min
Delivery rate

Pure performance. For every application.

The Fendt 700 Vario Gen7 sets new standards in driving dynamics. The powerful engine with a maximum output of 221 kW / 303 hp results in a power-to-weight ratio of 67 lbs./hp. The VarioDrive powertrain accelerates the Fendt 700 Vario up to 37 miles/hour if desired. This allows you to effortlessly and fuel-efficiently master transport tasks that require agility, speed, and high payloads.

Specifications

MODEL 722 Vario
Rated power ECE R 120 HP/kW 223 / 164
Maximum power ECE R 120 HP/kW 223 / 164
Maximum power DP ECE R 120 HP/kW
PTO HP HP/kW 185 / 138
Number of cylinders 6
Cylinder bore/stroke mm 110 / 132
Cubic capacity in3/cm3 459.3 / 7,527
Rated speed rpm 1700
Max. Torque at 1300 rpm ft-lbs/Nm 848 / 1,150
Torque rise % 25
Fuel tank Gal/L 118.9 / 450
DEF tank Gal/L 14.5 / 54.9
Exhaust gas treatment DOC/DPF/SCR
Transmission & PTO
Transmission type ML 190
Drive range forward mph / km/h 65 ft./hr. to 31 mph / 0.02 km/h to 50 km/h
Drive range reverse mph / km/h 65 ft./hr. to 20.5 mph / 0.02 km/h to 33 km/h
Rear PTO 540 / 540E / 1000 / 1000E
Front PTO option 1000
Engine speed for rear PTO (540 PTO) rpm 1618
Engine speed for rear PTO (540E PTO) rpm 1283
Engine speed for rear PTO (1,000 PTO) rpm 1649
Engine speed for rear PTO (1,000E PTO) rpm 1308
Engine speed for front PTO (1,000 PTO) rpm 1647
Linkage & Hydraulics
Variable displacement pump gpm / lpm 43.6 / 165
Variable displacement pump Option gpm / lpm 58.1 / 220
Operating pressure / control pressure psi / bar 2,900 + 290 / 200 + 10
Max. valve (front/center/rear) Profi / Profi Plus 2 / 3 / 5
Max. hydraulic fluid capacity gal / L 25 / 95
Max. removable hydraulic fluid capacity gal / L 21 / 80
Flow Rates & Lift Capacity
Flow rate control valves (1st valve) gpm / lpm 37 / 140 (DUDK)
Flow rate control valves (2nd valve) gpm / lpm 37 / 140 (DUDK)
Flow rate control valves (3rd valve) gpm / lpm 37-45 / 140-170 (DUDK)
Flow rate control valves (4th valve) gpm / lpm 37-45 / 140-170 (DUDK)
Flow rate control valves (5th valve) gpm / lpm 37 / 140 (DUDK)
Max. lifting capacity rear linkage lb / kg 24,729 / 11,216
Max. lifting capacity front linkage lb / kg 11,914 / 5,404
Electrical Equipment
Batteries 1
Battery power Ah/V 180 / 12
Alternator V/A 14 / 240
Max. portable current ISOBUS socket A 60+25
Dimensions*
Track width rear in / mm 73.6 / 1,870
Total width in / mm 100.4 / 2,550
Total length in / mm 217.2 / 5,516
Total height driver's cab w/standard tires w/o Fendt Guide in / mm 123.7 / 3,142
Total height driver's cab w/standard tires w/Fendt Guide in / mm 125.7 / 3,192
Max. ground clearance in / mm 22.4 / 570
Wheel base in / mm 114.2 / 2,900
*720–724 Measurements based on 540/65R30 Fronts, 650/65R42 Rears
*726–728 Measurements based on 540/65R34 Fronts, 650/85R38 Rears
Weights
Empty weight
(basic tractor w/cab—tanks full, w/o driver) lb / kg"
19,400 / 8,800
Max. permissible gross weight lb / kg 33,069 / 15,000
Max. trailer hitch drawbar load lb / kg 4,409 / 2,000
Max. permissible front axle load lb / kg 15,211 / 6,900
Max. permissible rear axle load lb / kg 25,353 / 11,500

* Specifications are manufacturer’s estimates at time of publication and are subject to change without prior notification.
