Krone ZX 470 GD

ZX High-performance short cut loading and forage transport wagon

• OptiGrass
• Camless pick-up with hydraulic drivewith hydraulic relief
• Integral rotor and SplitCut for optimum conditioning – provides for an optimum cut
• Pull-out blade cassette with 40 or 54 individually protected blades
• Optional SpeedSharp blade grinder
• Pivoting front wall increases capacity from a compact build
• Axle assembly with hydraulic auto-levelling system
• Premium lighting Standard
• Options, which are worthwhile!

The KRONE ZX dual-purpose loading and forage transport wagon is impressive all along the line thanks to its modern design, innovative technologies and excellent forage quality. With the high-performance 'OptiGrass 28 and 37' cutting systems, it offers a clean, precise cut as well as structured and homogeneous forage conditioning across the entire width. Maximum power and efficiency round off the programme. The ZX sets new standards in the high-performance loading and forage transport wagon segment.

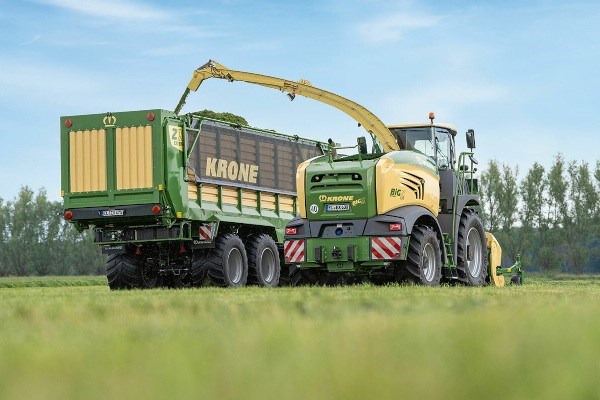

ZX – The high-capacity range

• Versatile
• Efficient
• Economical
• Operator comfort

Working economically means: boosting efficiency, cutting costs and utilising equipment to full potential all year round. This is the scenario in which KRONE developed the ZX dual-purpose wagon. Dual-purpose means these machines serve as both loading and forage transport wagon in maize and grass.

OptiGrass

• Clean cut in theoretical length of 28 or 37 mm
• Optimal structure gentle conditioning under all conditions
• Homogeneous uniform conditioning of each stalk over its full width
• Precise wide steel plates and blades arranged for shear cutting
• Perfectly coordinated precise interaction between pick-up and cutting rotor
• Innovative new integral rotor with unique divider wall system

Thanks to the KRONE OptiGrass system, the forage quality is clean, homogeneous and uniform. This is possible due to the precise cutting method with a choice of cutting lengths of 28 or 37 mm. Thanks to the perfectly coordinated technologies, conditioning is gentle, resulting in a clean and high-quality result.

The KRONE EasyFlow pick-up

• Hydraulic drive independent of the cutting rotor
• Automatic or manual rotation speed adjustment to the driving speed
• Maintenance-free and low wear
• Uniform filling staggered arrangement of the tines in a W-shape
• Large pivoting range
• Electrohydraulic relief for even better sward protection

The EasyFlow pick-up with hydraulic drive is the ideal solution for demanding requirements. With its 6.5 mm thick double tines in a helical layout, it meets the most demanding requirements in ease of maintenance and pick-up capacity. The hydraulic drive integrated in this pick-up offers an even larger work width, which helps to collect even more material at an optimum driving speed and maximizes the intake capacity.

The OptiGrass concept

• OptiGrass 37 mm cutting distance with 40-blade cutting unit
• OptiGrass 28 mm cutting distance with 54-blade cutting unit
• KRONE PowerBelt the drive concept for extremely high throughput rates.
• Integral rotor with augers high-performance crop flow with maximum pick-up width
• KRONE SplitCut optimum conditioning over the entire rotor width

KRONE OptiGrass – state-of-the-art technology for perfect forage conditioning. The 40-blade cutting unit with a cutting distance of 37 mm and the 54-blade cutting unit with a cutting distance of 28 mm ensure optimum forage quality. KRONE PowerBelt ensures extremely high throughput rates and the KRONE SplitCut system ensures gapless conditioning across the entire rotor width.

The OptiGrass cutting unit

• Top cutting quality Shear cut
• Theoretical cutting length: OptiGrass 28 mm with maximum 54 blades | OptiGrass 37 mm with maximum 40 blades
• Central blade group control system: 0, 20, 20, 40 blades | 0, 27, 27, 54 blades
• Blade changing without tools and with central locking

KRONE OptiGrass cutting units offer wide tine holders and closely spaced, guarded blades which provide an easy and precise cut, similar to a pair of scissors. Two cutting units with 40 or 54 blades are available for optimum conditioning. Thanks to the central blade group control system, the cutting length can be varied at any time between a half and full set of blades, allowing cutting distances of 28 or 56 mm or 37 or 74 mm. OptiGrass therefore offers a flexible solution for different cutting lengths.

The quick-change blade system

• Blade cassette can be swivelled out to the side
• Blade changing without tools and with central locking
• Central operation on the left side of the vehicle
• 40 or 54 sharp blades on the side of the blade cassette for a quick change

You change the blades without tools and without leaning over the blade cassette which is now alongside the machine. lower the blade cassette, swing it out to the side and remove the blades without tools – a time and cost saving system.
