Flail Shredders

S27CD

HEAVY-DUTY

Industry’s Largest Flail Tube
12.75″ diameter flail tube for increased rigidity resulting in smoother operation.

4X Shredding Action
Tri-lateral hood design and spiral-mounted knives deliver four times the cutting action, slicing crop residue into smaller pieces for faster decomposition.

Gearbox Design
Special oil seal protectors prevent vines from damaging the gearbox. A high-capacity gearbox with a large oil volume keeps bearings cool and extends gearbox life.

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Features
Specifications

Features

Engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work.

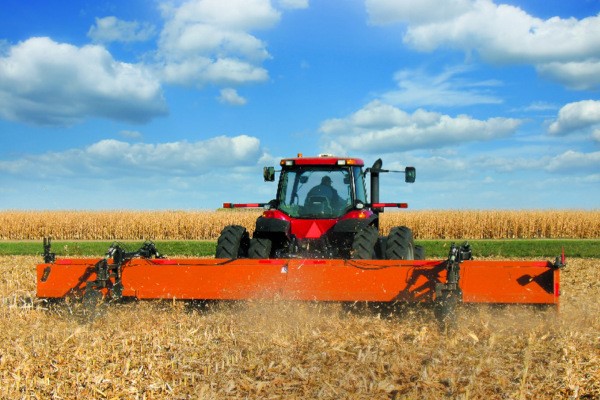

Note: Caster-style wheel not available on pictured model.

Knife Style Options

Standard L Knife Heat-treated, 6mm reversible for long life
HD-Cotton L Knife Heat-treated, Duraface^®, 8mm reversible for longer life and durability in severe conditions

Specifications

Product Tier	Heavy-Duty
Minimum Tractor PTO HP	162
Driveline 2 Point and 3 Point	CAT 6
Adjustable Cutting Height (in)	2 - 14
Cutting Width (in)	327
Overall Width (in)	334
Weight (lbs)	6,138
Number of L Knives	312
Lift HP Required	165
Flail Tube Diameter (in)	12.75
Flail Tube End Bearing (in)	2.18
Shielding	Rubber belting or steel flaps
Knife Retention	Bolt-on (no D-rings)
Knife Types	Double-edged L (6mm), double-edged HD-cotton Duraface® (8mm) L
Wheel Size (in)	9.5L x 15
Wheel Arm Types	Rigid strut
Gearbox Rating (HP)	300 *Gearbox horsepower ratings listed are based on field testing.
Optional Friction Clutch	24,000 lbs inch rating
Automatic Clutch	30,000 lbs inch rating (1.75-inch 20 PTO only)
Gearbox Warranty	6 years - limited
Optional Hitches	2-point, 3-point (quick-hitch compatible) pull
Pull-type	CAT 6 CV
Knife Pattern	Spiral
Pull HP Required	165
Hood Type	Smooth, trilateral shape
Hood/Deck Thickness (in)	.18 (optional wearliner available)
End Plate Thickness (in)	0.25
